INTELLIGENT COMPACTION

Intelligent Compaction (IC) is an equipment-based technology for better quality control that results in longer pavement lives. IC machines are vibratory rollers that include accelerometers mounted on the axle of drums, a global positioning system, infra-red temperature sensors (for asphalt), and on-board computers that can display color-coded maps in real-time to track roller passes, asphalt surface temperatures, and stiffness of compacted materials.

 IC can drastically improve quality control (QC) of highway construction that leads to higher quality of embankment, subbase, and pavements. IC is also used many other fields for improved QC such as: airport pavements, railway bases, ports, landfill covers, earth dams, and etc.

FHWA (2017). Intelligent Compaction Measurement Value (ICMV) – A Road Map, US FHWA Tech Brief, FHWA-HIF-17-046, 9 pp.

Intelligent Compaction Measurement Value (ICMV)

Intelligent Compaction Measurement Value (ICMV) is a generic term, coined by the US Federal Highway Administration (FHWA), for a calculated value based on accelerometer measurements on IC vibratory roller drums. ICMV is a modern compaction quality control metrics and techniques that can cover 100 percent of the compacted area. Therefore, IC and ICMV can be used to improve quality monitoring and control, but also pushing the enhancements of roller technologies.

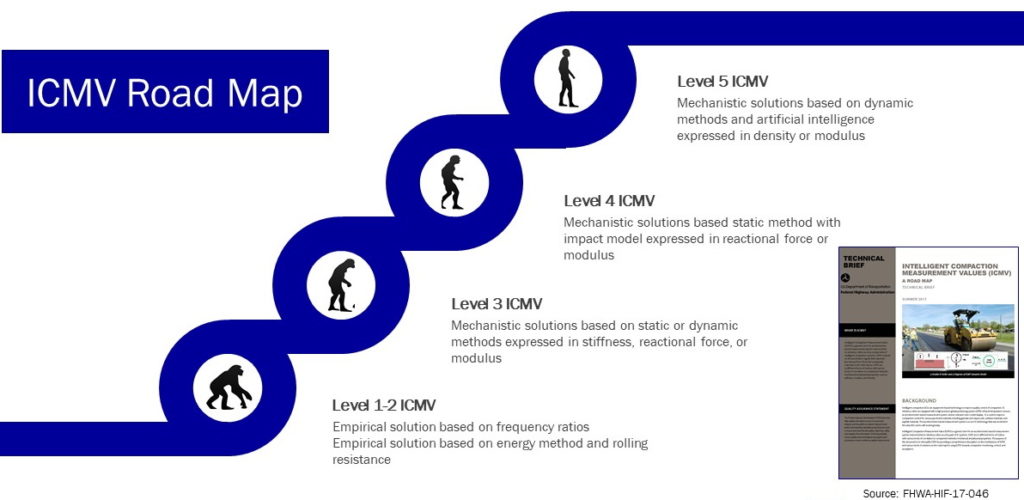

The following describe the “Levels of ICMV” for the systematic classification of ICMV. The classification is based on four criteria: (1) correlation with material’s mechanical (modulus) and physical properties (density), (2) validity during decoupling when a drum loses contact with compacted body, (3) capability to allow performance analysis of the compacted body, (4) applicability to obtain layer-specific mechanical and physical properties of compacted body, (5) capability to be enhanced by advanced technology such as AI. This lays out the road map for past, present, and future ICMV development.

  • Level 1 ICMV – Empirical Solutions based on Frequency Responses: The Level 1 ICMVs are empirical solutions based on frequency responses represented by harmonic ratios. It is computed based on the Reactive Model for Vibratory Compaction or Reactive Model for Oscillation Frequency Reactive Model.
  • Level 2 – Energy and Rolling Resistance Solutions: The Level 2 ICMVs are energy and rolling resistance solutions. It is computed based on Reactive Model with Rolling Resistance for static compaction.
  • Level 3 – Simplified Static Mechanistic Solutions: The Level 3 ICMVs are simplified static mechanistic solutions. It is a static solution based on Discrete Vibration Model, Steel Drum Movement Model, or Continuum Static Model.
  • Level 4 – Hybrid Model with Dynamic Mechanistic Solutions: The Level 4 ICMVs are dynamic mechanistic solutions with hybrid of various mechanistic ICMV models.
  • Level 5 – Dynamic Mechanistic and Artificial Intelligence Solutions: The Level 5 ICMVs are a combination of dynamic mechanistic solutions and artificial intelligence solutions.

Notes:

1. Correlation: The threshold value for coefficient of correlation between ICMV and in-situ spot tests is generally accepted as R = 0.70 or R = 0.5.

2.  Decouple: Produce valid solution of ICMV during double-jump or decouple when the roller drum and compacted material lose contact.

3. Layer Specific: Produce layer-specific ICMV values.

4. Advanced IC: The ICMV can be combined with advanced technologies such as Artificial Intelligence and auto-feedback controls.

4. X: No or Bad, O: Satisfactory, ?: Unproven; V: Yes or Good.

 Literature

AASHTO. (2014) Standard Practice for Intelligent Compaction Technology for Embankment and Asphalt Pavement Applications. AASHTO PP 81-14, AASHTO, Washington, DC.

Adam, D. (1996). Continuous Compaction Control (CCC) with vibrating rollers (in German). Doctoral Thesis, Mödling, Austria.

Adam, D. (1997). “Continuous compaction control (CCC) with vibratory rollers,” Proc., GeoEnvironment 97 1st Australia – New Zealand Conf. on Environmental Geotechnics, 245 – 250, November, Melbourne, Australia.

Adam, D. (1997). “Flächendeckende dynamische verdichtungs kontrolle (FDVK) mit vibrationswalzen sonderdruck (Surface covering dynamic compaction control with vibration rollers – special edition.” Österreichische Geotechniktagung (Austrian Geotechnique Conf.), 26 and 27 May, Vienna.

Adam, D. (1999). “Flächendeckende dynamische verdichtungskontrolle mit vibrationswalzen. (Continuous Compaction Control with vibratory rollers)”. Austrian Engineer and Architect Magazine 144, Class Number 2, Vienna, 65-74 (in German).

Adam, D. (1999). “Geotechnics of the Austrian-Hungarian Highway A4”, Geotechnical Engineering for Transportation Infrastructure, Barends et al. (eds), Balkema, Rotterdam.

Adam, D. (2001). “Sophisticated compaction of soil, earth structures, roads and rail tracks.” Proc., 5th Intl. Geotech. Conf. Geotechnical Structures Optimization, September, Bratislava, Slovakia.

Adam, D. (2007). “Roller integrated continuous compaction control (CCC) technical contractual provisions & recommendations,” Design and Construction of Pavements and Rail Tracks: Geotechnical Aspects and Processed Materials, A.G. Correia, Y. Momoya, and F. Tatsuoka, eds., Taylor & Francis Group, London, UK, pp. 111–138.

Adam, D., (1999). “Elastic plastic modelling of homogeneous and layered soil under dynamic loading”. Proc. Of COST 337 & ETC 11 Workshop on Modelling and Advanced Testing for Unbound Granular Materials, January, Lisboa, Portugal.

Adam, D., and Brandl, H. (1997). “Roller-Integrated Continuous Compaction Control of Soils”, Proc., 3rd Intl. Conf. on Soil Dynamics (ICSD-III), August, Tiberias, Israel.

Adam, D., and Brandl, H. (2000). Flächendeckende dynamische verdichtungskontrolle (FDVK) mit vibrationswalzen – vrundlagenforschung und praktische anwendung (Continuous Compaction Control with vibratory rollers – basic research and practical application), Road Research Publications Number 506, Research Project No. 3.147, Federal Minisitry of Economic Affairs, Vienna (in German).

Adam, D., and Kopf, F. (1998). “Application of continuous compaction control (CCC) to waste disposal liners”, Proc. 3rd Intl. Congress on Environmental Geotechnics, September, Lisboa, Portugal.

Adam, D., and Kopf, F. (2000). “Sophisticated compaction technologies and continuous compaction control,” Workshop on Compaction of Soils and Granular Materials, Modeling of Compacted Materials, Compaction Management and Continuous Control, Intl. Society of Soil Mechanics and Geotechnical Engineering (European Technical Committee), 207 – 220, Paris.

Adam, D., and Kopf, F. (2000). “Sophisticated roller compaction technologies and roller-integrated compaction control.” Compaction of Soils, Granulates and Powders, A.A.Balkema, Rotterdam, Brookfield, 113-132.

Adam, D., and Kopf, F. (2004). “Operational devices for compaction optimization and quality control (Continuous Compaction Control & Light Falling Weight Device).” Proc., of the Intl. Seminar on Geotechnics in Pavement and Railway Design and Construction, December, Athens, Greece (Invited paper), 97-106.

Adam, D., and Kopf, F. (2004). Anwendung der Flächendeckenden Dynamischen Verdichtungskontrolle (FDVK) im Deponiebau (Application of Continuous Compaction Control (CCC) for landfill construction), Österreichische Wasser- und Abfallwirtschaft Heft (in German).

Adam, D., and Kopf, F. (2005). Flächendeckende Dynamische Verdichtungskontrolle (FDVK) – Kalibrierung und Anwendung gemäß RVS 8S.02.6 (Continuous Compaction Control (CCC) – calibration and application according to the Austrian specification RVS 8S.02.6), Austrian Engineer and Architect Magazine 150, Class Number 4-5/2005, Vienna. (in German).

Adam, D., Brandl, H. (2002). “Roller-integrated continuous compaction control of soils” Annuaire de l’universite d’architecture, de genie civil et de geodesie – Sofia, Bulgaria (in French).

Adam, D., Brandl, H. (2003). “Sophisticated roller integrated continuous compaction control.” Proc., 12th Asian Regional Conf. on Soil Mechanics and Geotechnical Engineering – Geotechnical Infrastructure for the New Millennium, August, Singapore.

Adam, D., Brandl, H., and Kopf, F. (2005). Continuous Compaction Control (CCC) with differently excited rollers, Schriftenreihe der Straßenforschung Heft 553, Forschungsvorhaben Nr. 3.176 (Road Research Publications No. 553, Research Project No. 3.176), Federal Ministry of Traffic, Innovation, and Technology, Vienna (in German).

Adam, D., Brandl, H., Kopf, F., and Paulmichl, I. (2007). “Heavy tamping integrated dynamic compaction control”, Ground Improvement, 11(4), 237-243.

Adam, D., Markiewicz, R. (2001). “Compaction behaviour and depth effect of the polygon-drum,” Geotechnics for Roads, Rail Tracks and Earth Structures, A.A.Balkema Publishers, Lisse /Abingdon/ Exton (pa) /Tokyo, 27-36.

AMMANN (1999). Einige Aspekte der Verdichtung, Langenthal, Schweiz

AMMANN (2002). European and U.S. Patents on the ACE-System, AMMAN Verdichtung AG, Langenthal, Switzerland.

AMMANN (2003). ACE-Soil Compaction and Compaction Control – CD ROM, AMMAN, Verdichtung AG, Langenthal, Switzerland.

Anderegg R., and Kaufmann, K. (2004). “Intelligent compaction with vibratory rollers – feedback control systems in automatic compaction and compaction control,” Transportation Research Record No. 1868, Journal of the Transportation Research Board, National Academy Press, 124-134.

Anderegg, R., (2000). “ACE Ammann Compaction Expert – automatic control of the compaction.” Workshop on Compaction of Soils and Granular Materials, Modeling of Compacted Materials, Compaction Management and Continuous Control, Intl. Society of Soil Mechanics and Geotechnical Engineering (European Technical Committee), 229-236, Paris.

Anderegg, R., von Felten, D., and Kaufmann, K. (2006). “Compaction monitoring using intelligent soil compactors.” Proc., GeoCongress 2006: Geotechnical Engineering in the Information Technology Age, February, Atlanta, CD-ROM.

Anderson,T., Embacher,R.A., Graettinger,A.J., Morgan, J., and Petersen, L.(2010) “Software and processes for intelligent compaction data analysis,” Proc., 89th Annual Transportation Research Board Meeting, January 10-14. Washington, D.C.

ATB Väg. (2004). “Kapitel E – Obundna material VV Publikation 2004:111,” General technical construction specification for roads, Road and Traffic Division, Sweden.

Babu, R.R. (2009) Large Data Clustering and Classification Schemes For Data Mining, Dissertation, India Institute of Science.

Brandl, H. (2001). “Compaction of soil and other granular material – interactions,” Geotechnics for Roads, Rail Tracks and Earth Structures, A.A.Balkema Publishers, Lisse /Abingdon/ Exton (Pa) /Tokyo, 3-11.

Brandl, H. (2001). “The importance of optimum compaction of soil and other granular material,” Geotechnics for Roads, Rail Tracks and Earth Structures, A.A.Balkema Publishers, Lisse /Abingdon/ Exton (Pa) /Tokyo, 47-66.

Brandl, H., Adam, D. (2004). “Continuous compaction control (CCC) for fill dams and roller compacted concrete dams,” New Developments in Dam Engineering – Proc., 4th Intl. Conf. on Dam Engineering, October, Nanjing, China (Keynote paper), 17-44.

Brandl, H., and Adam, D. (1997). “Sophisticated Continuous Compaction Control of Soils and Granular Materials” Proc., XIVth Intl. Conf. on Soil Mechanics & Foundation Engineering, Vol. 1, September, Hamburg, Germany.

Brandl, H., and D. Adam. (2000) “Flächendeckende dynamische verdichtungskontrolle (FDVK) mit vibrationswalzen—grundlagenforschung und praktische anwendung (continuous compaction control with vibratory rollers—basic research and practical application). Schriftenreihe der Straß enforschung Heft 506, Forschungsvorhaben Nr. 3.147, Bundesministerium für Wirtschaftliche Angelegenheiten, Wien.

Brandl, H., F. Kopf, and D. Adam. (2005) “Continuous compaction control (CCC) with differently excited rollers.” Schriftenreihe der Straßenforschung Heft 553, Forschungsvorhaben Nr. 3.176, Bundesministerium für Verkehr, Innovation und Technologie, Wien.

Bräu, G., K. Hartman, and G. Pelz. (2004) “Flächendeckende prufung der verdichtung (FDVK)—baupraktische umsetzung und verfahrens-bezogene verdichtungsanforderungen (CCC testing of compaction—implementation in construction practice and procedure-related Compaction specifications),” Lehrstuhl und Prüfamt für Grundbau, Bodenmechanik und Felsmechanik der Technischen Universitat München, Heft 897, München.

Briaud , J. L., Seo, J. (2003). Intelligent Compaction: Overview and Research Needs, Texas A&M University.

Camargo, F., Larsen, B., Chadbourn, B., Roberson, R., and Siekmeier, J. (2006). “Intelligent compaction: a Minnesota case history.” Proc., 54th Annual University of Minnesota Geotech.Conf., February, Minneapolis, CD-ROM.

Chang, George K., and Gallivan, Victor L., and Xu, Qinwu, (2014) Assess Asphalt In-Place Density with Intelligent Compaction Measurements, 12th International Society of Asphalt Pavements (ISAP) Conference, Raleigh, North Carolina, June 1-5.

Chang, George K., Xu, Qinwu, Rutledge, J., Horan, B., Michael, L., White, D., and Vennapusa, P. (2012), Accelerated Implementation of Intelligent Compaction Technology for Embankment Subgrade Soils, Aggregate Base, and Asphalt Pavement materials, Federal Highway Administration, Washington, DC, USA, FHWA-IF-12-002.

Commuri, S. (2010). Intelligent asphalt compaction analyzer ─ highways for life, technology partnerships program, Final report, Federal Highway Administration, DTFH61-08-G-00002.

Commuri,S., Mai,A., and Zaman, M. (2009) “Calibration procedures for the intelligent asphalt compaction analyzer,” Journal of Testing and Evaluation 37 (5), 1-9.

Commuri,S., Mai,A., and Zaman, M. (2009) “Field validation of the intelligent asphalt compaction analyzer,” 2009 17th Mediterranean Conference on Control and Automation, Thessaloniki, Greece.

Commuri,S., Mai,A., and Zaman, M. (2011) “Neural network-based intelligent compaction analyzer for estimating compaction quality of hot asphalt mixes,” Journal of Construction Engineering and Management (in press).

DYNAPAC (1989). Compaction and paving, theory and practice, Karlskrona, Sweden.

Facas, N.W., and Mooney, M.A. (2010). “Influence of rocking motion on vibratory roller-based measurement of soil stiffness position reporting of data from intelligent compaction rollers,” Journal of Engineering Mechanics, ASCE 136 (7), 898-905.

Facas, N.W., and Mooney, M.A. (2010). “Position reporting of data from intelligent compaction rollers.” Journal of Testing and Evaluation, ASTM 38 (1), 1-6.

Facas, N.W., Mooney, M.A., and Furrer, R. (2010). “Anisotropy in the spatial Distribution of Roller-Measured Soil Stiffness,” Intl. Journal of Geomechanics, ASCE, 10(4), 129-135.

FHWA. (2014) Intelligent Compaction Technology for Asphalt Applications: Generic—IC Specifications for Asphalt Materials. FHWA. Available at https://www.fhwa.dot.gov/construction/ictssc/ic_specs_hma.pdf. Accessed April 29, 2016.

Floss, R. (1991). “Dynamische verdichtungsprüfung bei erd- und straßenbauten (Dynamic compression check with earth constructions and road constructions,” Notebook 612, Research and Traffic Technology, Federal Ministry for Traffic, Germany (in German).

Floss, R. and Kloubert, H., (2000), “Newest Developments in Compaction Technology,” Workshop on Compaction of Soils and Granular Materials, Modeling of Compacted Materials, Compaction Management and Continuous Control, , Intl. Society of Soil Mechanics and Geotechnical Engineering (European Technical Committee), Paris.

Floss, R., Gruber, N.,and Obermayer, J. (1983). “A dynamical test method for continuous compaction control.” Proc. 8th European Conf. on Soil Mechanics and Foundation Engineering, Rathmayer, H.G., and Saari, K.H.O., Eds., May, Helsinki, 25-30.

Forssblad, L. (1980). “Compaction meter on vibrating rollers for improved compaction control”, Proc., Intl. Conf. on Compaction, Vol. II, 541-546, Paris.

Forssblad, L. (1984). Compaction control using vibratory rollers equipped with compaction meter -studies at Arlanda airport, Research Bulletin No. 8031, Dynapac, Sweden.

Gallivan, V.L., Chang, K.G., Xu, Q., and Horan, R.D. (2011). “Validation of intelligent compaction measurement systems for practical implementation”, Proc., 90th Annual Transportation Research Board Meeting, January 19-23. Washington, D.C.

Gallivan, Victor Lee, and Chang, George K., (2012) Harmonization and Standardization of Intelligent Compaction Technologies for Practical Implementation, Proceedings of Canadian Technical Asphalt Association (CTAA) Conference.

Gallivan, Victor Lee, Chang, George K., Horan, Robert, 2011 “Intelligent Compaction for Improving Roadway Construction”, Emerging Technologies for Material, Design, Rehabilitation, and Inspection of Roadway Pavements (GSP 218), Proceedings of the 2011 GeoHunan International Conference, ASCE Conf. Proc. doi:10.1061/47629(408)15.

Gallivan, Victor Lee, Chang, George K., Horan, Robert, 2011 “Practical Implementation of Intelligent Compaction Technology in Hot Mix Asphalt Pavements”, Asphalt Paving Technology 2011, Journal of Association of Asphalt Paving Technologists, Volume 80, pp. 1-32.

Gallivan, Victor Lee, Chang, George K., Xu, Qinwu, Horan, Robert, (2011) “Validation of Intelligent Compaction Measurement Systems for Practical Implementation”, The Transportation Research Board (TRB) 90th Annual Meeting.

Geistlinger, L. (1996). “Onboard compaction meters make inroads into U.S. market”, Roads & Bridges Magazine, 34(8), August, 40 – 42.

Geodynamik. (1982). Compactometer, compaction meter for vibratory rollers ALFA-030, Internal Report, Geodynamik, Stockholm, Sweden.

Gorman, P. and Mooney, M. (2003). “Monitoring roller vibration during compaction of crushed rock,” Proc., 20th Intl. Symp. on Automation and Robotics in Construction, Eindhoven, Netherlands, Ger Maas & Frans van Gassel, Eds., 415-419.

Grabe, J. (1994) “Spatial variation of soil stiffness: spectral density approach,” Soil Dynamics and Earthquake Engineering 13, Great Britain, pp. 25–29.

Hannon, J.J. (2007) Emerging technologies for construction delivery, Final report, NCHRP 372, Washington, D.C.

Hansbo, S., and Pramborg, B. (1980). “Compaction control.” Proc., Intl. Conf. on Compaction, Vol. II, 559-564, Paris.

Hartman, K. (2002) “Untersuchung zur prognose von anforderungswerten an die Beschleunigungsmesswerte der FDVK—methode (research towards prediction of specification values (measurement values) of CCC methods based on the acceleration measurement values).” Dissertation, Lehrsthul und Prfamt für Grundbau, Bodenmechanick und Felsmechanick der Technischen Universitnchen, Schriftenreihe Heft 34, München.

Hoover, J.M. (1985). In-situ stability of smooth-drum vibratory compacted soils with Bomag Terrameter, Engineering Research Institute, ERI Project No. 1722, Iowa State University, Ames, Iowa, March.

Horan, Robert D., Chang, George K., Xu, Qinwu , and Gallivan, Victor L., (2012) Improving Quality Control of Hot Mix Asphalt Paving Using Intelligent Compaction Technology, Transportation Research Record: Journal of the Transportation Research, No. 2268, Construction 2012.

Hossain, M., Mulandi, J., Keach, L., Hunt, M., and Romanoschi, S. (2006). “Intelligent compaction control.” Proc., 2006 Airfield and Highway Pavement Specialty Conf., ASCE, May, Atlanta, Ga.

Iai, M., and Gertsch, L.(2009) “Soil density from ripping force measurement during site preparation,”

ISSMGE. (2005). Roller-Integrated continuous compaction control (CCC): Technical Contractual Provisions, Recommendations, TC3: Geotechnics for Pavements in Transportation Infrastructure. Intl. Society for Soil Mechanics and Geotechnical Engineering.

Iwakuma, H., and Sumiyoshi, K. (1995). “The effect of compaction by the vibratory roller”, Proc., of the 4th Asia-Pacific Regional Conf. of the ISTVS: Oskonowa, Japan, November, 157-163.

Johnson, G. (2010) “Intelligent compaction (history, projects, and analysis),” the 57th MAAPT Asphalt Conf., 2010.

Kloubert, H. (2002). “Asphalt manager with high efficient compaction system for better roads,” Proc., Intl. Conf. on Bituminous Mixtures and Pavements, Thessaloniki, Greece.

Kopf, F. (1999). Continuous Compaction Control (CCC) during compaction of soils by means of dynamic rollers with different kinds of excitation (in German). Doctoral Thesis, Vienna, Austria.

Kopf, F., (1999). Continuous Compaction Control (CCC) During compaction of soils by means of dynamic rollers with different kinds of excitation, Ph.D. Dissertation, Technical University of Vienna, Faculty of Civil Engineering, Vienna, Austria.

Kopf, F., and Erdmann, P. (2005) “Numerische untersuchunsen der flachendecker dynamischer verdichtungskontrolle (numerical analysis of continuous compaction control),” Osterreichische Ingenieus-und Architekten-Zeitschrift (OIAZ), 150(4–5), 126–143.

Kröber, W. (1988) “Untersuchung der dynamischen vorgäge bei der vibrationsverdichtung von böden (analysis of dynamic operation during the vibrational compaction of soil),” Dissertation, Lehrstuhl und Prufamt fur Grundbau, Bodenmechanik und Felsmechanik der Technischen Universität, Munchen, Schriftenreihe Heft 11, Munchen.

Kröber, W., Floss, E., Wallrath, W. (2001). “Dynamic soil stiffness as quality criterion for soil compaction,” Geotechnics for Roads, Rail Tracks and Earth Structures, A.A.Balkema Publishers, Lisse /Abingdon/ Exton (Pa) /Tokyo, 189-199.

Liu, Y., and Xu, H. (2009) “Study on dynamic model of intelligent vibratory roller,” Construction Machinery 17.

Ma, S. (2009) “Design and implementation of remote control and data acquisition system based on NetX,” Information and Electronic Engineering 05.

Machet, J.M. (1980). “Compactor-mounted control devices”, Proc., Intl. Conf.on Compaction, Vol. II, 577-581, Paris.

Machet, J.M., and Sanejouand, R. (1980). “Modules mathematiques dans le domaine du compactage par vibration”, Proc., Intl. Conf. on Compaction, Vol. II, Paris.

Mansa, R.F., Bridson, R.H., Greenwood, R.W., Barker,H., and Seville, J.P.K. (2008) “Using intelligent software to predict the effects of formulation and processing parameters on roller compaction,” Powder Technology, Elsevier, 181(2) 217-225.

Marconi, T., Lu, Y., Bertels, K., and Gaydadjiev, G. (2010) “3D Compaction: a novel blocking-aware algorithm for online hardware task scheduling and placement on 2D partially reconfigurable devices,” Reconfigurable Computing: Architectures, Tools and Applications, Lecture Notes in Computer Science, 5992/2010 (194-206), 3-19.

Mayne, P.W. (2007) Cone penetration testing, Final report, NCHRP 368, Washington, D.C.

Meehan, C.L. (2007). Use of nondestructive techniques to estimate the allowable vibratory compaction level during construction, Florida Department of Transportation, FL/DOT/SMO/07-BDB-11.

Meehan, C.L.(2010) “An Introduction to continuous compaction control systems,” February 18, 2010 – Presentation at DelDOT Winter Workshop, 1-36.

Miller, S.R., Hartmann, T., and Dorée, A.G. (2011)“Measuring and visualizing hot mix asphalt concrete paving operations,” Automation in Construction, Elsevier (in press, doi:10.1016/j.autcon.2010.11.015).

Minchin, R. E., Thomas, H, R. (2003). “Validation of vibration-based onboard asphalt density measuring system.” J. Const. Eng. and Mgmt., 129(1), February. 1-7.

Minchin, R., Swanson, D., and Thomas, H. (2005). “Computer methods in intelligent compaction.” Proc., 2005 Intl. Conf. on Computing in Civil Engineering, Cancun, CD-ROM.

Minchin, R.E. Thomas, H.R. Swanson, D.C. (2001). “Theory behind a vibration-based quality-based asphalt density measuring system,” Transportation Research Record No. 1761, Journal of the Transportation Research Board, National Academy of Press, 70-78.

Minchin, R.E., Swanson, D.C., Gruss, A.F., and Thomas, H.R. (2008) “Computer Applications in Intelligent Compaction,” J. Comp. in Civ. Engrg. 22(4), 243-251.

Mn/DOT. (2007). Excavation and embankment – (QC/QA) IC quality compaction (2105) pilot specification. Minnesota Department of Transportation, St. Paul, Mn.

MnDOT (2016). Quality Management Special – Intelligent Compaction (IC) Method. March 1. Available at http://www. dot.state.mn.us/materials/amt/icdocs/ 2016%20Quality%20IC%20Method%20SP2016-60%2003.01.16%20version.pdf. Accessed April 29, 2016.

Mooney, M. A. and Rinehart, R. (2007). “Field Monitoring of Roller Vibration during Compaction of Subgrade Soil,” Journal of Geotechnical and Geoenvironmental Engineering, ASCE, 133(3), 257-265.

Mooney, M. A., and Adam, D. (2007). “Vibratory roller integrated measurement of earthwork compaction: An overview.” Proc., 7th Intl.Symp. on Field Measurements in Geomechanics: FMGM 2007, ASCE, Boston, Ma.

Mooney, M. A., Gorman, P. B. and Gonzalez, J. N. (2005). “Vibration Based Health Monitoring During Earthwork Construction,” Structural Health Monitoring, 4(2), 137-152.

Mooney, M., Bouton, C., and Pan, J. (2001). “Measurement of acceleration during vibratory compaction of unsaturated soils.” Proc. of 10th Int. Conf. Soil Dynamics & Earthquake Engineering, Philadelphia, Pa.

Mooney, M., Chan, G.B., Farouk, E. and Pan, J. (2002). “Health monitoring during vibratory soil of compaction”, Proc., 9th Intl. Symp. on Smart Structures and Materials, San Diego, CA. March 18-22.

Mooney, M., Gorman, P.B., Chan, G., and Srour, C. (2002). “Observed changes in vibratory roller signature during soil compaction.” Proc., 1st European Conf. on Structural Health Monitoring, Balageaus D. L. (Ed), July, Paris, France.

Mooney, M., Rinehart, R., and van Susante, P. (2006). “The Influence of Heterogeneity on Vibratory Roller Compactor Response,” Proc., GeoCongress 2006: Geotechnical Engineering in the Information Technology Age, February, Atlanta, CD-ROM.

Mooney, M., White, D. (2007). Intelligent soil compaction systems, Interim Report (unpublished), NCHRP 21-09 Project, Prepared for NCHRP Transportation Research Board of the National Academies, February.

Mooney, M.A., and Miller, P.K. (2009). ” Analysis of lightweight deflectometer test based on in situ stress and strain response field monitoring of roller vibration during compaction of subgrade soil,” Journal of Geotechnical and Geoenvironmental Engineering, ASCE, 135(2), 199-208.

Mooney, M.A., and Rinehart, R.V. (2007) “Field monitoring of roller vibration during compaction of subgrade soil,” Journal of Geotechnical and Geoenvironmental Engineering, ASCE, 133(3), 257–265.

Mooney, M.A., and Rinehart, R.V. (2009) ” In-situ soil response to vibratory loading and its relationship to roller-measured soil stiffness,” Journal of Geotechnical and Geoenvironmental Engineering, ASCE, 135(8), 1022-1031.

Mooney, M.A., Gorman, P.B., Tawfik, E.F., Gonzalez, J.N. and Akanda, A.S. (2003). Exploring Vibration-Based Intelligent Soil Compaction, Oklahoma Department of Transportation Report, Item 2146.

Mooney, M.A., Rinehart, R.V., Facas, N.W., Musimbi, O.M., White, D.J., and Vennapusa, P.K.R.(2010) Intelligent soil compaction systems, Final Report, NCHRP 676, Washington, D.C.

Newman, K., and White, D. (2008). “Rapid assessment of cement/fiber stabilized soil using roller-integrated compaction monitoring.” Transportation Research Record: Journal of the Transportation Research Board, National Academy Press 2059, 95-102.

Newman, K., White, D. J. (2008). Rapid Soil Stabilization for Contingency Airfield Construction, Army Corps of Engineers Report.

Nohse, Y., Kitano, M. (2002). “Development of a new type of single drum vibratory roller.” Proc., 14th Intl. Conf. of the Intl. Soc. for Terrain-Vehicle Systems, Vicksburg, MS, October.

Nohse, Y., Uchiyama, K., Kanamori, Y., Kase, J., Kawai, Y., Masumura, K., and Tateyama, K. (1999). “An attempt applying a new control system for the vibratory compaction using GPS and CMV in the embankment construction (Part 1).” Proc. of the 13th Intl. Conf. of the ISTVS: Okinowa, Japan, 295-300.

Petersen, D. (2004). Continuous compaction control – MnROAD demonstration, Mn/DOT Report MN/RC – 2005-07, CNA Consulting Engineers, Minneapolis, Mn.

Petersen, D., Erickson, M., and Roberson, R., and Siekmeier, J. (2007). “Intelligent soil compaction: geostatistical data analysis and construction specifications,” Transportation Research Board 86th Annual Meeting, Washington, D.C., Paper #07-2858, CD-ROM.

Petersen, D., Siekmeier, J., Nelson, C., Peterson, R. (2006). “Intelligent soil compaction – technology, results and a roadmap toward widespread use.” Transportation Research Record No. 1975, Journal of the Trasnsportation Research Board, National Academy Press, 81-88.

Petersen, L. (2005) Continuous compaction control MnROAD demonstration. Final report, Mn/DOT, Report No.MN/RC-2005-07.

Petersen, L., and Peterson, R. (2006). Intelligent Compaction and In-Situ Testing at Mn/DOT TH53, Final Report MN/RC-2006-13, May, Minnesota Department of Transportation, St. Paul, Mn.

Pfeiffer, G.H. (2010) Using radio-frequency identification technology to measure asphalt cooling, Master Thesis, University of Maryland.

Pietzsch, D., and Poppy, W. (1992). “Simulation of soil compaction with vibratory rollers”, Journal of Terramechanics, 29(6), 585-597.

Pistrol, J. (2016). Compaction with Oscillating Rollers (in German), Doctoral Thesis, Vienna: Vienna University of Technology.

Pistrol1, J., Villwock, S., Völkel, W., Kopf, F., Adam, D., (2014) Roller Compaction – Impact of Dynamic Drums in Comparison, XV Danube – European Conference on Geotechnical Engineering (DECGE 2014), H. Brandl & D. Adam (eds.), 9-11 September 2014, Vienna, Austria.

Pistrol1, J., Villwock, S., Völkel, W., Kopf, F., Adam, D., (2016), Continuous Compaction Control (CCC) with Oscillating Rollers, Advances in Transportation Geotechnics 3, The 3rd International Conference on Transportation Geotechnics (ICTG 2016), Volume 143, Pages 514–521.

Preisig, M., Caprez, M., and Amann, P. (2003). “Validation of continuous compaction control (CCC) methods.” Workshop on Soil Compaction, September, Hamburg.

Preisig, M., Noesberger, R., Caprez, M., Amann, P., and Anderegg R. (2006) Flächendeckende verdichtungskontrolle (FDVK) mittels bodenmechanischer materialkenngrössen (continuous compaction control based on geotechnical parameters). Report VSS 2000/353, Institute for Geotechnik, Federal Institute of Technology ETH, Zurich.

Rahman, F., Hossain, M., Hunt, M. , and Romanoschi S. (2008) “Soil stiffness evaluation for compaction control of cohesionless embankments,” Geotechnical Testing Journal, 31(5), 1–10.

Rinehart, R. and Mooney, M. (2005). “Instrumentation of a Roller Compactor to Monitor Earthwork Compaction,” Proc. 22nd Int. Symp. Automation and Robotics in Construction, Sept. 11-14, Ferrara, Italy.

Rinehart, R., and Mooney, M. (2008). “Instrumentation of a roller compactor to monitor vibration behavior during earthwork compaction.” Journal of Automation in Construction, 17(2), 144-150.

Rinehart, R.V., and M.A. Mooney. (2009b) “Measurement depth of vibratory roller-measured soil stiffness,” Geotechnique, 59(7), 609–619.

Rinehart, R.V., and Mooney, M.A. (2008). “Instrumentation of a roller compactor to monitor vibration behavior during earthwork compaction,” Automation in Construction, Elsevier, 17, 144-150.

Rinehart, R.V., and Mooney, M.A. (2009a) “Measurement of roller compactor induced triaxial soil stresses and strains,” Geotechnical Testing Journal, ASTM, 32(4), 347–357.

Rinehart, R.V., Berger, J.R., and Mooney, M.A. (2009) “Comparison of stress states and paths: vibratory roller-measured soil stiffness and resilient modulus testing”, Transportation Research Record 2116, 8-15.

Rinehart, R.V., Mooney, M.A., and Berger, J.R. (2008) “In-ground stress-strain beneath center and edge of vibratory roller compactor,” Advances in Transportation Geotechnics: Proc.s 1st Intl. Conf. on Transportation Geotechnics, Nottingham, U.K., Aug. 25–27, 737–741.

RVS 8S.02.6. (1999). “Continuous compactor integrated compaction – Proof (proof of compaction),” Technical Contract Stipulations RVS 8S.02.6 – Earthworks, Federal Ministry for Economic Affairs, Vienna.

Ryden, N. and Mooney, M. (2007). “Surface Wave Testing to Investigate the Nature of Roller Determined Soil Stiffness,” Proc. Symp. on the Application of Geophysics to Engineering and Environmental Problems: SAGEEP 2007, Denver, Colorado, April, 1388-1394.

SAKAI (1996). Compaction equipment, theory and practice, Takayanagi, Japan.

Samaras, A., Lamm, R., and Treiterer, J. (1991). “Application of continuous dynamic compaction control for earthworks in railroad construction.” Transportation Research Record No. 1309, Journal of the Transportation Research Board, National Academy Press, 42-46.

Sandström A.J., and Pettersson, C.B. (2004). “Intelligent systems for QA/QC in soil compaction”, Proc., 83rd Annual Transportation Research Board Meeting, January 11-14. Washington, D.C.

Sandström, Å. (1993). “Oscillatory compaction.” Proc., XII IRF World Road Congress, 957-961, May, Madrid.

Sandström, Å. (1994). Numerical simulation of a vibratory roller on cohesionless soil, Internal Report, Geodynamik, Stockholm, Sweden.

Scherocman, J., Rakowski, S., and Uchiyama, K. (2007). “Intelligent compaction, does it exist?”, Proc.s of the Annual Conf.-Canadian Technical Asphalt Association, Issue 52, pages 373-398, Polyscience publication, 2007.

Sebesta, S., and Liu, W. (2009) “Instrumented rollers to assess construction quality on Texas projects,” Transportation Research Record 2116, 1-7.

Sebesta, S., Estakhri, C., Scullion, T., Liu W. (2006). New technologies for evaluating flexible pavement construction: Year 1 report, FHWA/TX-06/0-4774-1, Texas Transportation Institute, The Texas A&M University System, College Station, Tx.

Sheiretov, Y., and Lyons, R. (2009). Scanning capacitive arrays for real-time, in-situ imaging of density and thickness in HMA roadways, Final report, NCHRP-138, Washington, D.C.

Shen, P. “Dynamic characteristics of the intelligent compactor model with adjustable vibration modes,” International Conference on Transportation Engineering 2009, Proceedings of the Second International Conference on Transportation Engineering.

Shen, P., and Lin, S. (2008) “Coupling analysis for integrated dynamics characteristics of intelligent compaction system,”China Mechanical Engineering 19(20), 2395-2399.

Singh, D., S., Mai, A., Fares, B., Sesh, C., Zaman, M. (2010) “In situ measurement of stiffness during the construction of HMA pavement,” Proc., 89th Annual Transportation Research Board Meeting, January 10-14. Washington, D.C.

Snowdon, R. (1992). Compaction monitoring devices for earthworks, Transport Research Laboratory, Research report No. 361, Crowthorne, Berkshire.

Susante, P.J., and Mooney, M.A. (2008). “Capturing nonlinear vibratory roller compactor behavior,” Journal of Engineering Mechanics, ASCE, 134(8), 684-693.

Tateyama, K., Nakajima, S., and Fujiyama, T. (1995). “The evaluation of ground properties and its application to the automatic control of vibratory soil comapctors,” Automattion and Robotics in Construction XII, Bundy, McCrea, and Szymanski (Eds), 563 – 570.

Tawfik, E. (2006). “Validation of numerical evaluation of dynamic response of lumped parameter systems using Runge-Kutta-Nystrom (R-K-N) method.” Proc., GeoCongress 2006: Geotechnical Engineering in the Information Technology Age, February, Atlanta, CDROM.

Thompson, M., and White, D. (2007). “Field calibration and spatial analysis of compaction monitoring technology measurements.” Transportation Research Record No. 2004, Journal of the Transportation Research Board, National Academy Press, 69-79.

Thompson, M., and White, D. (2008). “Estimating compaction of cohesive soils from machine drive power.” J.of Geotech. and Geoenviron. Engg, ASCE, 134 (12), 1771-1777.

Thompson, M., White, D., Gieselman, H., and Siekmeier, J. (2008). “Variable feedback control intelligent compaction to evaluate subgrade and granular pavement layers – Field study at Minnesota US 14.” Proc., 87th Annual Transportation Research Board Meeting, Washington, D.C.

Thurner, H. (1980). “The compactometer principle: Contribution to the discussion in Session IV.” Proc., Intl. Conf. on Compaction, Vol. II, Paris.

Thurner, H. (1993). ” Continuous compaction control – specifications and experience.” Proc., XII IRF World Congress, 951-956, Madrid.

Thurner, H. and Sandström, Å. (1980). “A new device for instant compaction control.” Proc., Intl. Conf. on Compaction, Vol. II, 611-614, Paris.

Thurner, H. and Sandström, Å. (1991). “Quality assurance in soil compaction,” Proc., XIXth PIARC World Road Congress, 468-477, Marrakesh.

Thurner, H., Forssblad, L. (1978). Compaction meter on vibrating rollers, Research Bulletin of Dynapac AB. No. 8022, Solna.

Thurner, H., Sandström, Å. (1980). Compaction meter on vibrating roller, Dynapac Research, Solna.

Thurner, H., Sandström, Å. (2000). “Continuous Compaction Control, CCC.” Workshop on Compaction of Soils and Granular Materials, Modeling of Compacted Materials, Compaction Management and Continuous Control, Intl. Society of Soil Mechanics and Geotechnical Engineering (European Technical Committee), 237-246, Paris.

Uchiyama, K., Kanamori, Y., Nohse, Y., and Mitsui, A. (1998). “Influence of soil comapction of vibrating rollers with different vibration mechanisms.” Proc., of the 5th Asia-Pacific Regional Conf., of the ISTVS: Okinawa, Japan, November, 112-119.

Vennapusa, P., White, D. J., and Morris, M.  (2009) “Geostatistical analysis of spatially referenced roller-integrated compaction measurements,” Journal of Geotechnical and Geoenvironmental Engineering, ASCE, 136(6), 813-822.

Vennapusa, P.K.R, and White,D.J.(2009) “Comparison of light weight deflectometer measurements for Pavement foundation materials,” Journal of Testing and Evaluation 32(3), 1-13.

West, R.C., Watson, D.E., Turner,P.A.(2010) Mixing and compaction temperatures of asphalt binders in hot-mix asphalt, Final report, NCHRP 648, Washington, D.C.

White, D., and Thompson, M. (2008) “Relationships between in situ and roller-integrated compaction measurements for granular soils,” Journal of Geotechnical and Geoenvironmental Engineering, ASCE, 134(12), 1763–1770.

White, D., and Thompson, M. (2008). “Relationships between in-situ and roller-integrated compaction measurements for granular soils.” J.of Geotech. and Geoenviron. Engg, ASCE (accepted).

White, D., Thopmson, M., Vennapusa, P., and Siekmeier, J. (2008). “Implementing intelligent compaction specifications on Minnesota TH 64: Synopsis of measurement values, data management, and geostatistical analysis.” Transportation Research Record: Journal of the Transportation Research Board, National Academy Press 2045, 1-9.

White, D., Vennapusa, P., and Gieselman, H. (2008c) “Roller-integrated compaction monitoring technology: field evaluation, spatial visualization, and specifications.” Proc.s, 12th Intl. Conf. of the Intl. Association for Computer Methods and Advances in Geomechanics (IACMAG), October 1–6, Goa, India.

White, D., Vennapusa, P., Gieselman, H. (2008). “Roller-integrated compaction monitoring technology: Field evaluation, spatial visualization, and specifications.” Proc., 12th Intl. Conf. of Intl. Assoc. for Computer Methods and Advances in Geomechanics (IACMAG), 1-6 October, Goa, India.

White, D.J, Jaselskis, E., Schaefer, V., and Cackler, E. (2005). “Real-time compaction monitoring in cohesive soils from machine response.” Transportation Research Record No. 1936, National Academy Press, 173-180.

White, D.J, Jaselskis, E., Schaefer, V., Cackler, T., Drew, I., and Li, L. (2004). Field Evaluation of Compaction Monitoring Technology: Phase I, Final Report, Iowa DOT Project TR-495, Iowa State University, Ames, Ia.

White, D.J, Morris, M., and Thompson, M. (2006), “Power-based compaction monitoring using vibratory padfoot,” Proc., GeoCongress 2006: Geotechnical Engineering in the Information Technology Age, Atlanta, CD-ROM.

White, D.J, Thompson, M., Jovaag, K., Morris, M., Jaselskis, E., Schaefer, V. and Cackler, E. (2006). Field evaluation of compaction monitoring technology: Phase II. Final Report, Iowa DOT Project TR-495, Iowa State University, Ames, Ia.

White, D.J, Thompson, M., Vennapusa, P. (2007). Field study of compaction monitoring systems: self-propelled non-vibratory 825G and vibratory smooth drum CS-533 E rollers, Final Report, Center of Transportation Research and Education, Iowa State University, Ames, Ia.

White, D.J, Thompson, M., Vennapusa, P. (2007). Field Validation of Intelligent Compaction Monitoring Technology for Unbound Materials, Mn/DOT Report No. MN/RC 2007-10, Iowa State University, Ia.

Xiao, P., Yun, N., Li, L., and Bang, C. (2010) “Experimental investigation of characteristics of vibratory compaction system with different water saturation,” Applied Mechanics and Materials 29-32, 1488.

Xie, X. (2008) “Application of wireless acceleration sensor in compaction degree measure,” Equipment Manufacturing Technology 07.

Xu , Qinwu, Chang, George K., Gallivan, Victor Lee, Horan, Robert, 2011 “Data Analysis For Hot Mix Asphalt Intelligent Compaction”, The Transportation Research Board (TRB) 90th Annual Meeting.

Xu , Qinwu, Chang, George K., Vennapusa, Pravana, White, David J., Horan, Bob, Michael, Larry L., Gallivan, Victor Lee, (2010) “Hot Mix Asphalt Intelligent Compaction ─ a Case Study”, The Transportation Research Board (TRB) 89th Annual Meeting.

Xu, Q., Chang, K.G., Gallivan, V.L., and Horan, R.D. (2011). “Data analysis for hot mix asphalt intelligent compaction “, Proc., 90th Annual Transportation Research Board Meeting, January 19-23. Washington, D.C.

Xu, Q., Chang, K.G., Vennapusa, P., White, D.J., Horan, R.D., Michael, L., Gallivan, V.L. (2010). “Hot Mix Asphalt Intelligent Compaction – A Case Study”, Proc., 89th Annual Transportation Research Board Meeting, January 10-14. Washington, D.C.

Xu, Qinwu, and Chang, George K., (2013) Evaluation of Intelligent Compaction for Asphalt Materials, Automation in Construction, vol. 30, pp. 104–112.

Xu, Qinwu, and Chang, George K., (2014) Experimental and Numerical Study of Asphalt Material Geospatial Heterogeneity with Intelligent Compaction Technology on Roads, Construction & Building Materials, ‐D‐14‐02013R1, Elsevier publication.

Xu, Qinwu, and Chang, George K., (2016) Adaptive Quality Control and Acceptance of Pavement Material Density for Intelligent Road Construction, Automation in Construction, Vol. 62.

Xu, Qinwu, Chang, George K., and Gallivan, Victor L., (2012) Development of a systematic method for intelligent compaction data analysis and management, Construction Building Materials, Volume 37, December 2012, Pages 470–480, Elsevier publication.

Xu, Qinwu, Chang, George K., and Gallivan, Victor L., (2015) A Sensing-Information-Statistics Integrated Model to Predict Asphalt Material density with Intelligent Compaction System, IEEE/ASME Transection on Mechatronics, Vol. 20, No. 6.

Xu, Qinwu, Chang, George K., Gallivan, Victor L , and Horan, Robert D., (2012) Influences of Intelligent Compaction Uniformity on Pavement Performance of Hot Mix Asphalt, Construction Building Materials, Volume 30, May 2012, Pages 746–752 , Elsevier publication.

Yongfeng, J., Guangfeng, L., Yindi, F., Zongyi, L. (2005). “Intelligent compaction control based on fuzzy neural network.” Proc., 6th Intl. Conf. on Parallel and Distributed Computing, Application, and Technologies (PDCAT’05), IEEE Computer Society, 5-8 December, Dalian, China.

Yoo, T., and Selig, E. (1980). “New concepts for vibratory compaction of soil”, Proc., Intl. Conf. on Compaction, Vol. II, 703-707,Paris.

Yoo, T.S., and Selig, E.T. (1979) “Dynamics of vibratory-roller compaction,” Journal of the Geotechnical Engineering Division, ASCE, 105(GT10), 1211–1231.

Yoo, T.S., and Selig, E.T. (1980) “New concepts for vibratory compaction of soil,” Proc., Intl. Conf. on Compaction, Vol. II, Paris.

Zambrano, C., Drnevich, V., Bourdeau, P. (2006). Advanced Compaction Quality Control, Indiana DOT Final Report FHWA/IN/JTRP – 2006/10, Purdue University.

Zhang, J., Xu, G., and Cai, Y. (2010) “Application of continuous compaction technology in the quality control and acceptance of high-speed railway subgrade,” Journal of Southwest Jiatong University (English-Edition), 18(3).

Zhang, Q., Yang, R., and Dai, J. (2009) “Study on identification of soil parameters in vibrating compaction,” Journal of Highway and Transportation Research and Development 08.

Zhang, Y., Zhang, J., Shu, X., Guo, L., Shi, Y., and Liu, X.(2009) “Optimization of intelligent compactness control rule of vibratory roller based on genetic algorithm method,” 2009 Fifth International Joint Conference on INC, IMS and IDC, Seoul, Korea.

Zhao, Z. (2009) “Use advantage of intelligent double—drum vibratory roller in pavement construction,” Construction Machinery & Construction Technology.

Zheng, J., Chen, X., Li, Q., and Ying, R. (2008) “Analysis research on vibratory compacting process of hot asphalt mixture pavement,” Engineering Mechanics 10

Zinke,S., Mahoney, J., and Meyer T.H. (2009) “Evaluating the long-term performance of pavements, thermally imaged during construction Phase 1: developing spatial tools for location identification,” CAPLAB1-2009. ZTVE StB/TP BF-StB. (1994). Surface Covering Dynamic Compaction Control Methods – German Specifications and Regulations, Additional Technical Contractual Conditions and Guidelines for Earthwork in Road Construction and Technical Testing Instructions for Soil and Rock in Road Construction, Research Society of Road and Traffic, Germany.
